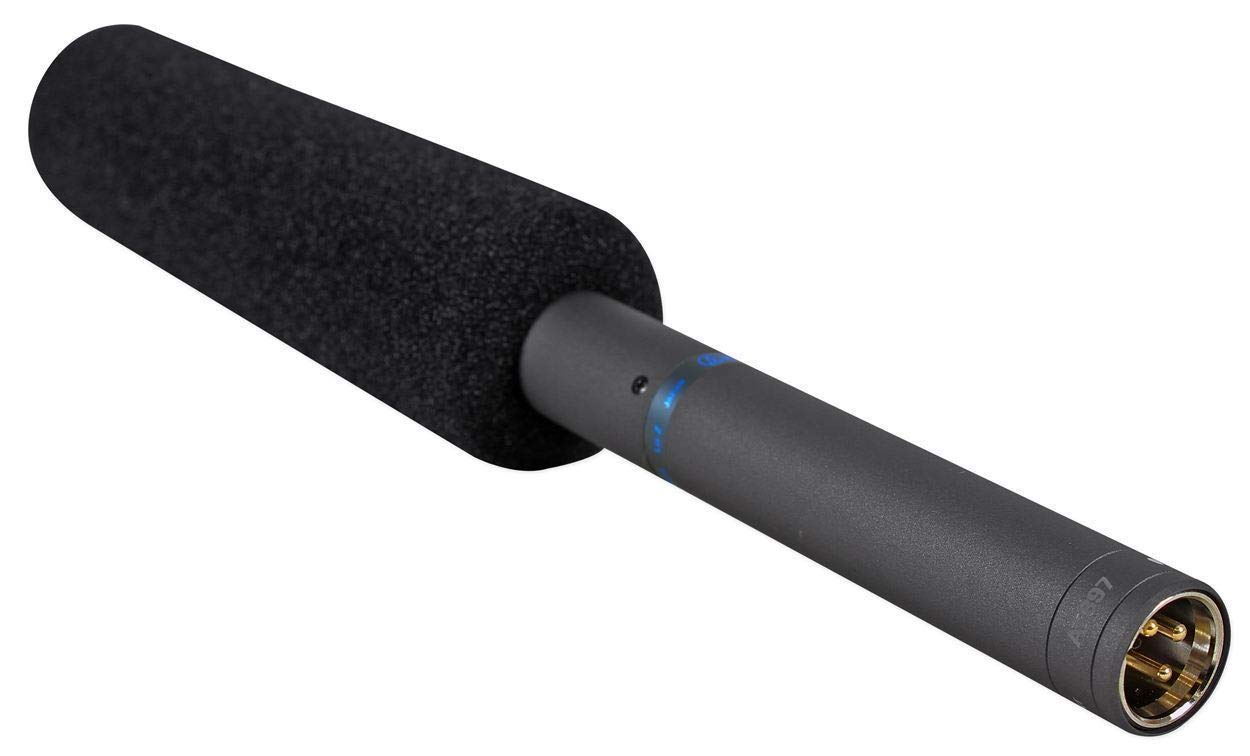

Features Designed for video production and broadcast (ENG/EFP) audio acquisition. Short length (11") ensures mic stays out of the shot -- even when used with compact digital cameras. Smooth, natural-sounding on-axis audio quality. Provides the narrow acceptance angle desirable for long-distance sound pickup. Excellent sound rejection from the sides and rear of mic

Switchable low-frequency roll-off. Operates on battery or phantom power. RoHS compliantfree from all substances specified in the EU directive on hazardous substances. Details ELEMENT Fixed-charge back plate, permanently polarized condenser. POLAR PATTERN Line + Gradient. FREQUENCY RESPONSE 20-20,000 Hz. LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave

OPEN CIRCUIT SENSITIVITY Phantom -40 dB (10.0 mV) re 1V at 1 Pa // Battery -41 dB (8.9 mV) re 1V at 1 Pa. IMPEDANCE Phantom 200 ohms // Battery 300 ohms. MAXIMUM INPUT SOUND LEVEL Phantom 129 dB SPL, 1 kHz at 1% T.H.D. // Battery 115 dB SPL, 1 kHz at 1% T.H.D. DYNAMIC RANGE (typical) Phantom 112 dB, 1 kHz at Max SPL // Battery 98 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO 77 dB, 1 kHz at 1 Pa. PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical. SWITCHES Flat, roll-off (recessed). WEIGHT 5.1 oz (145 g). DIMENSIONS 10.98" (279.0 mm) long // 0.83" (21.0 mm) diameter. OUTPUT CONNECTOR Integral 3-pin XLRM-type

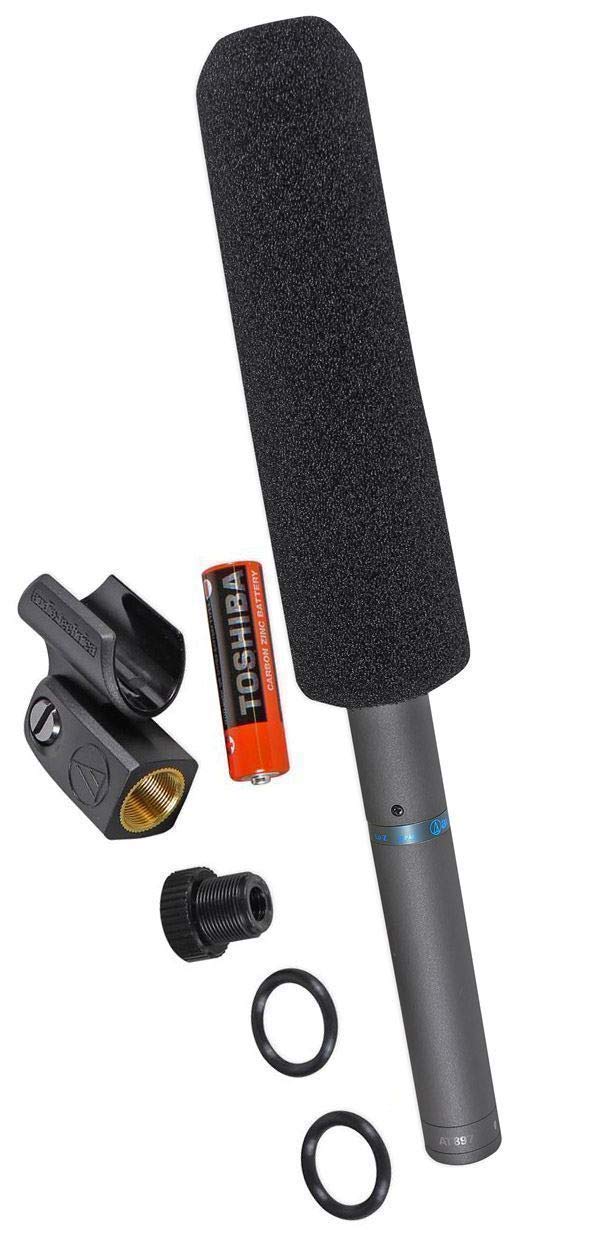

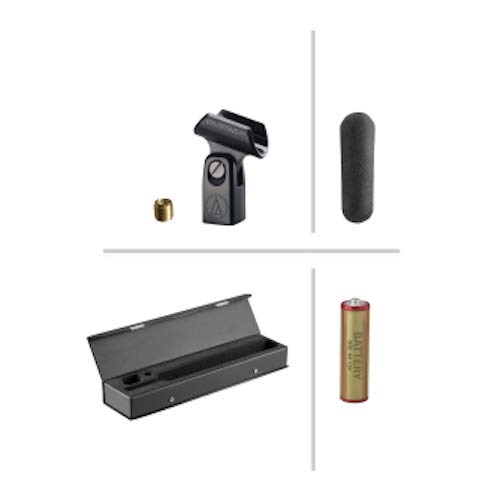

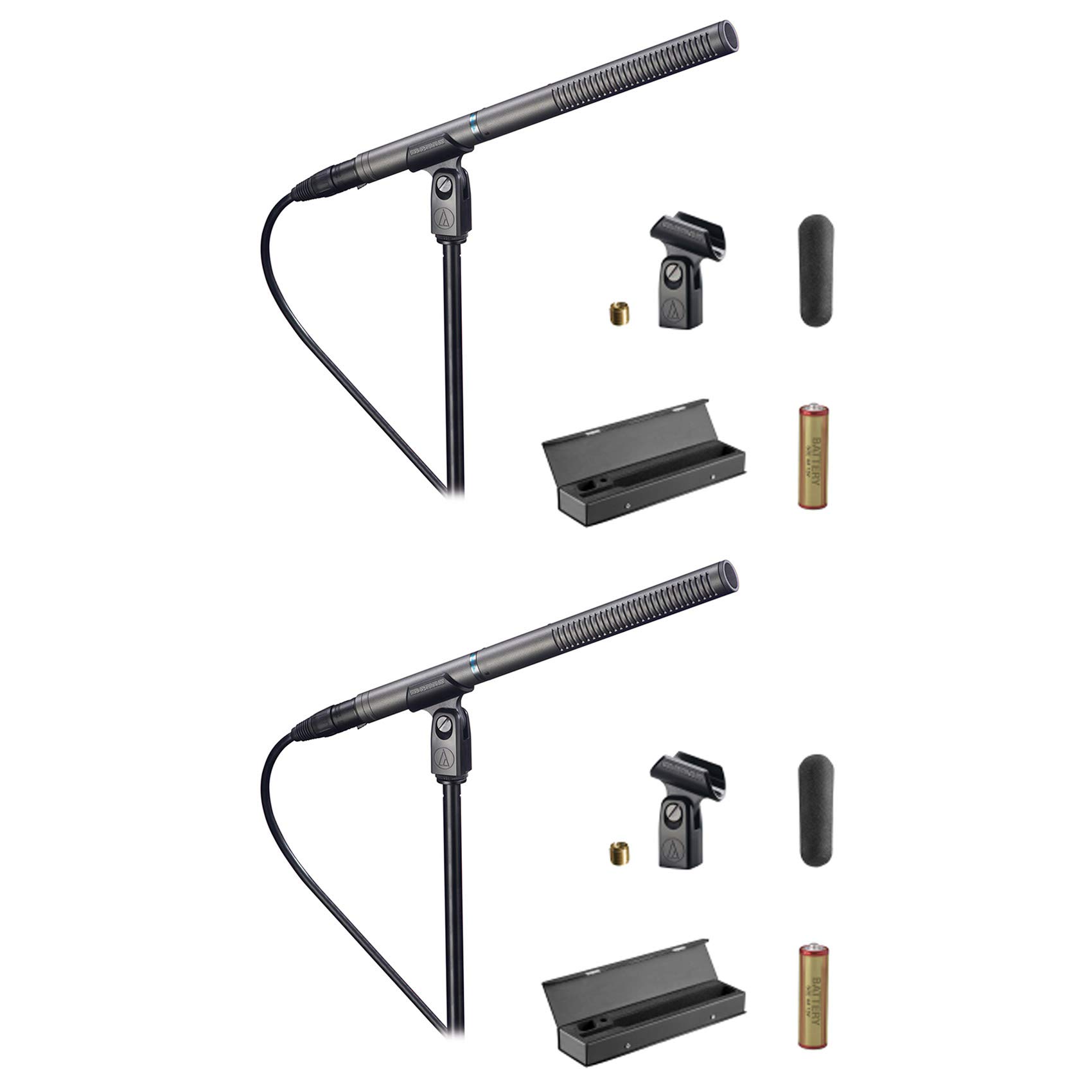

ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; AT8134 windscreen; battery; 5/8"-27 to 3/8"-16 threaded adapter; protective carrying case. AUDIO-TECHNICA CASE STYLE SG2. Click Here To View The Specification Sheet (Link Opens In New Window). Click Here To View The Data Sheet (Link Opens In New Window)
